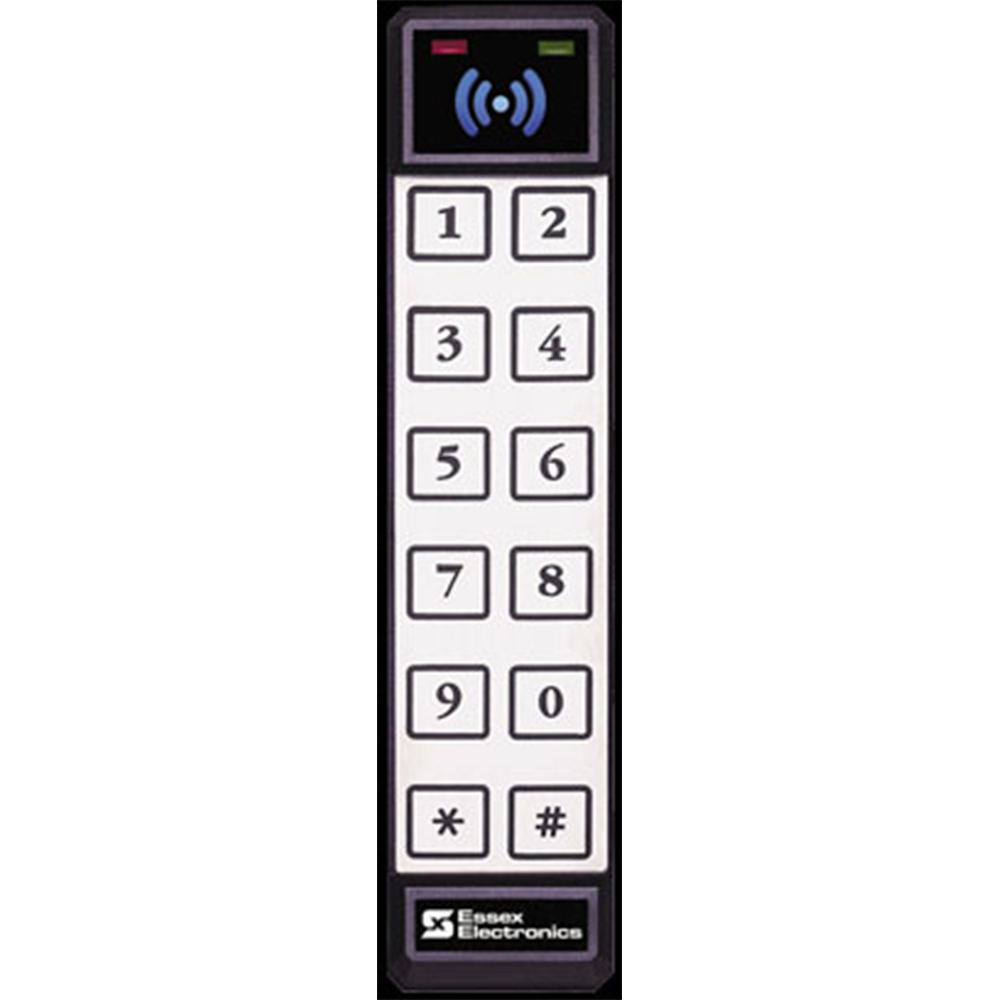

T-Prox, Thin Line with Proximity, K1 Series Keypad, 2x6 Stainless

Item #:TPX-26S
You must be logged in to order this item.
Log in here
TPX-26S

Features

  • Power Requirements: 5 VDC or 12 to 24 VDC Field Selectable
  • Keypad Switch Life Cycle: > 1 Billion Cycles
  • Keypad Switch Technology: Essex proprietary Piezoelectric (no moving parts)
  • Card Reader Transmit Frequency: 125kHz
  • Read Range: Up to 3 in.
  • Operating Temperature: -40 C to +70 C (-40 F to +160 F)
  • Operating Environment: 100% Relative Humidity
  • Standby current Draw:
    • Non Illuminated < 30 Milliamps
    • Illuminated < 100 Milliamps
  • Keypad Output: Field Selectable 26 Bit Wiegand, 8 Bit or 4 Bit Word format
  • Card Reader Output: Wiegand. Supports card formats up to 91 bits.
  • Dimensions: 7 1/8 H x 1 3/4 W x 3/4 D in.(18.1 x 4.4 x 1.9 cm)
  • Weight: 4.4 oz. (125 g)
