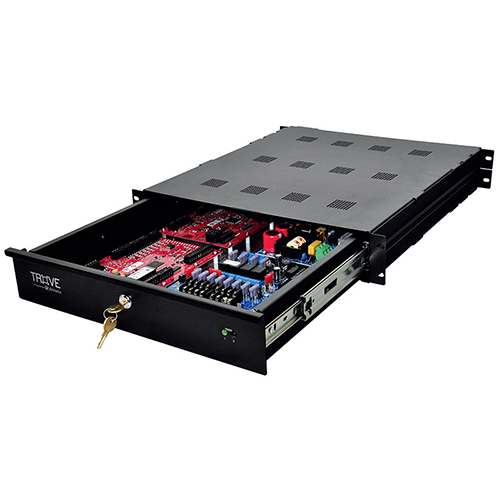

Altronix T1RM3F4 rack kit is pre-assembled and consists of Trove1M1R enclosure/backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure.
Power Supply (eFlow6NB):
Input
  • Voltage: 120VAC, 60Hz, 3.5A max.
  • Fusing: 5A / 250V.
Output
  • Voltage: Factory set at 24VDC.
  • Current: 6A continuous.
  • Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, PDS8 Power Distribution Module’s and ACM4 Access Power Controller’s outputs is 5.6A.
  • Auxiliary: Class 2 power-limited @ 1A (unswitched).
  • Other: Overvoltage protection. Filtered and regulated.
Battery Backup
  • Built-in charger for sealed lead acid or gel type batteries (if batteries are required, install separate battery enclosure RE2).
  • Automatic switch over to stand-by battery when AC fails.
  • Zero voltage drop when unit switches over to battery backup (AC failure condition).
Fire Alarm Disconnect
  • Supervised: Latching or non latching.
  • EOL: 10K Resistor.
Supervision
  • AC Failure: Form “C” contacts.
  • Battery: Form “C” contacts.
  • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
  • Input: 120VAC is present.
  • DC Output: Powered.
  • Battery: Discharged or not connected.
Access Power Controller (ACM4):
Input
  • Voltage: 24VDC from eFlow6NB.
  • Fusing: 10A / 250V.
Output
  • Voltage: 24VDC.
  • Four (4) independently controlled 2.5A outputs:
  • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
  • b) Four (4) dry form “C” 5A rated relay outputs.
  • c) Any combination of the above.
  • Four (4) auxiliary power outputs (unswitched).
  • Fuses Rating: 3A / 32VDC.
Indicators (LED's)
  • Red LEDs: Outputs are triggered (relays energized).
  • Green LED: FACP disconnect is triggered.
Power Distribution Module (PDS8):
Input
  • Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
  • Fusing: 10A / 250V.
Output
  • Voltage: 12 or 24VDC individually selectable.
  • Fuses Rating: 3A / 32VDC.
Indicators (LED)
  • DC Output: Eight (8) individual output LEDs.
