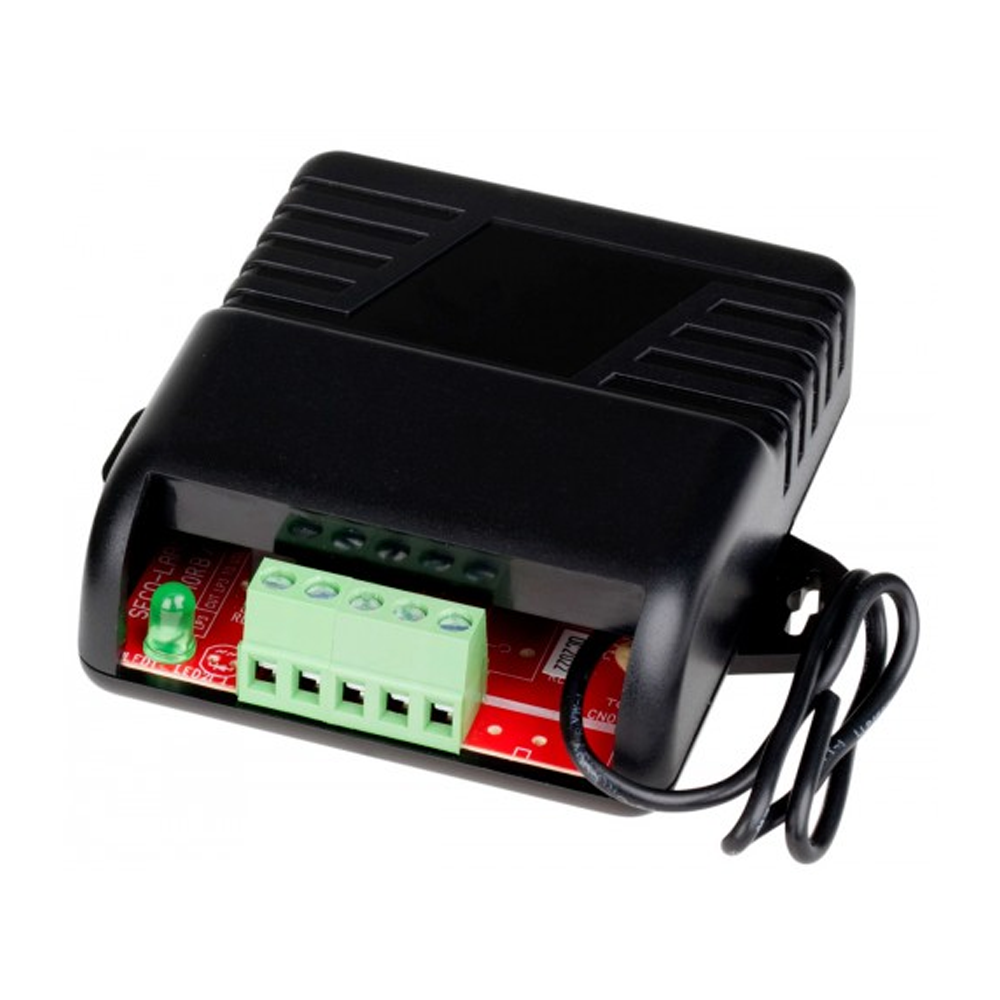

1-Channel RF Receiver, 11~24 VAC/VDC, 315MHz, Relay Output

Item #:SK-910RBQ
You must be logged in to order this item.
Log in here
SK-910RBQ

  • Compatible with all ENFORCER 315MHz transmitters
  • Use to control garage door opener, house lights, alarm control panel, or other devices via remote control
  • 10A @ 24VDC or 120VAC per channel, NO/NC/COM
  • Frequency 315MHz
  • This revolutionary receiver incorporates:
    • Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
    • HIGHER SENSITIVITY for greater operating distances.
    • UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
    • GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
  • LED indicates RF reception, learn mode entered, transmitter learned, memory cleared
  • Mode switch for easy transmitter learning
  • Learns up to 15 transmitters
  • 5 Output modes (programmable):
    • 4-Second momentary,
    • 1-Second momentary,
    • Toggle,
    • Validity: receiver outputs for as long as the transmitter button is pressed,
    • Latch
  • Screw terminals for simple connection

Access Control Readers

Brand
Seco-Larm
SK-910RBQ
1-Channel RF Receiver, 11~24 VAC/VDC, 315MHz, Relay Output
