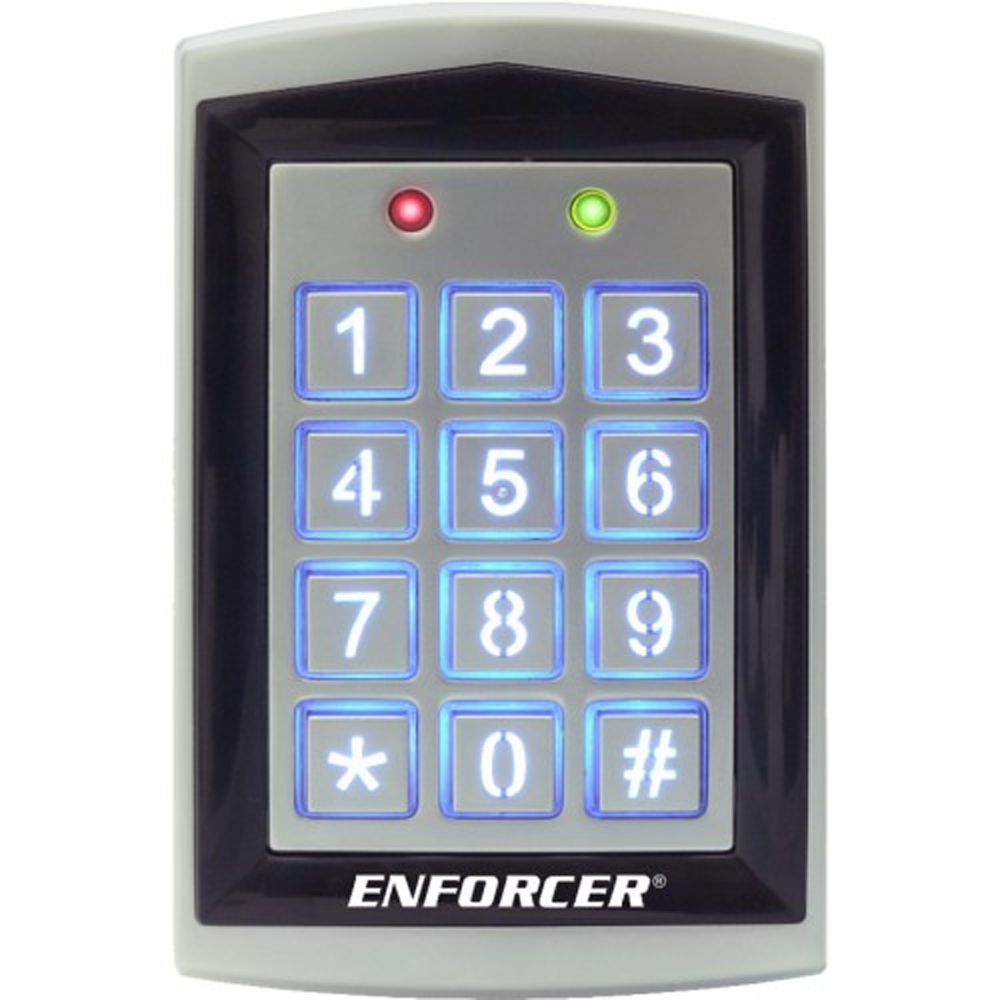

Sealed-Housing Outdooer Stand-Alone Keypad w/Built-In Proximity Reader

Item #:SK-1323-SPQ
You must be logged in to order this item.
Log in here
SK-1323-SPQ

  • 12~24 VAC/VDC operation
  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
  • 2 Form C relays, each rated 1 Amp @ 30VDC
  • Each relay has programmable output time from 1~99 seconds or toggle
  • Output #2 can be programmed for use with a doorbell
  • 2 Egress inputs and 1 door sensor input
  • Backlit keys for easy nighttime use
  • Two multi-colored status LEDs
  • Able to mount to a single-gang back box
  • All features are programmed directly from the keypad - no need for an external programmer
  • EEPROM memory protects programmed information in case of power loss
  • Optical tamper for added security
  • Circuitry is potted with epoxy for outdoor use
  • IP65 Weatherproof rating, rugged aluminum construction
  • Built-in proximity card reader
  • 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
  • Output #2 may have either a card or a code programmed for each user
