Touch io

Item #:RDRBT
You must be logged in to order this item.
Log in here

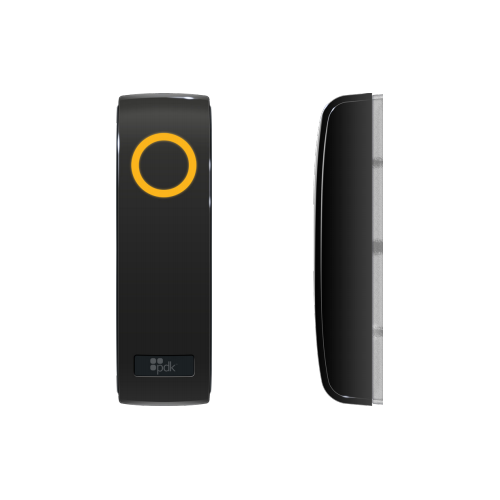

ProdataKey RDRBT
  • The Bluetooth Low Energy-compatible reader utilizes BLE version 4.0 and supports modern mobile devices and prox cards.
  • Unlimited mobile credentials
  • RFID Proximity 26- to 37-bit Wiegand-based 125KHz pass through of bit length
  • Touch-to-access, or touch-to-open. With the phone in your pocket, touch the reader and the door unlocks.
  • Voltage: 5.5 to 16VDC at the reader. A 12VDC regulated power supply at the reader is recommended for best operation.
  • Current Draw: 100mA – 200mA typical, maximum of 350mA peak at 12VDC.
  • Sophisticated military grade and best-in-class security with Public Key Infrastructure (PKI) architecture to encrypt credentials in the cloud and directly at the door
  • Inside/Out Detection technology
  • ISOProx II (HID Prox II H10301 compatible FSK modulations *)
  • EM4102 (ASK modulations)
  • RGB backlit LED ring for user feedback
  • Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
  • Water resistant IP65** (IP rated as “dust tight” and protected against water projected from a nozzle.)
  • FCC, RoHs, UL Standard 294
  • 5KHz audio buzzer
  • Operating temperature: -40° to 140° F (-40° to 60° C)
  • Dimensions (HxWxD): 6 x 1.7 x 1.3 inches / 15.24 x 4.32 x 3.3 cm
