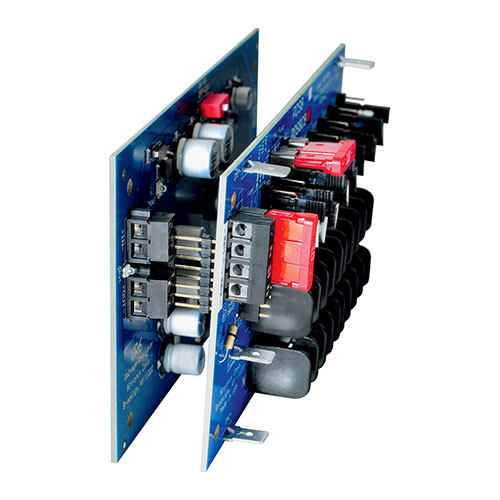

Kit includes: VR6 Voltage Regulator and PDS8CB Power Distribution

Item #:PDS8CBK1
You must be logged in to order this item.
Log in here
PDS8CBK1

Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. / Altronix PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.
VR6

  • Power Input / Output:
    • Input: 24VDC @ 1.75A  Output: 5VDC @ 6A.
    • Input: 24VDC @ 3.5A  Output: 12VDC @ 6A.
  • Output:
    • 5VDC or 12VDC regulated output.
    • Output rating 6A max. non power-limited.
    • Surge suppression.
  • LED Indicators:
    • Input and output LEDs.
  • BTU/Hr (approx.):
    • 5VDC: 15 BTU/Hr.
    • 12VDC: 37 BTU/Hr.
PDS8CB
  • Power Input 1 and Input 2 Voltage Range:
    • 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
  • Outputs:
    • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
    • Individual outputs may be set to OFF position for servicing.
    • PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
    • Surge suppression.
  • LED Indicators:
    • Eight (8) individual output LEDs.
