Two-Way Wireless Transceiver

Item #:M1XRFTWM
You must be logged in to order this item.
Log in here

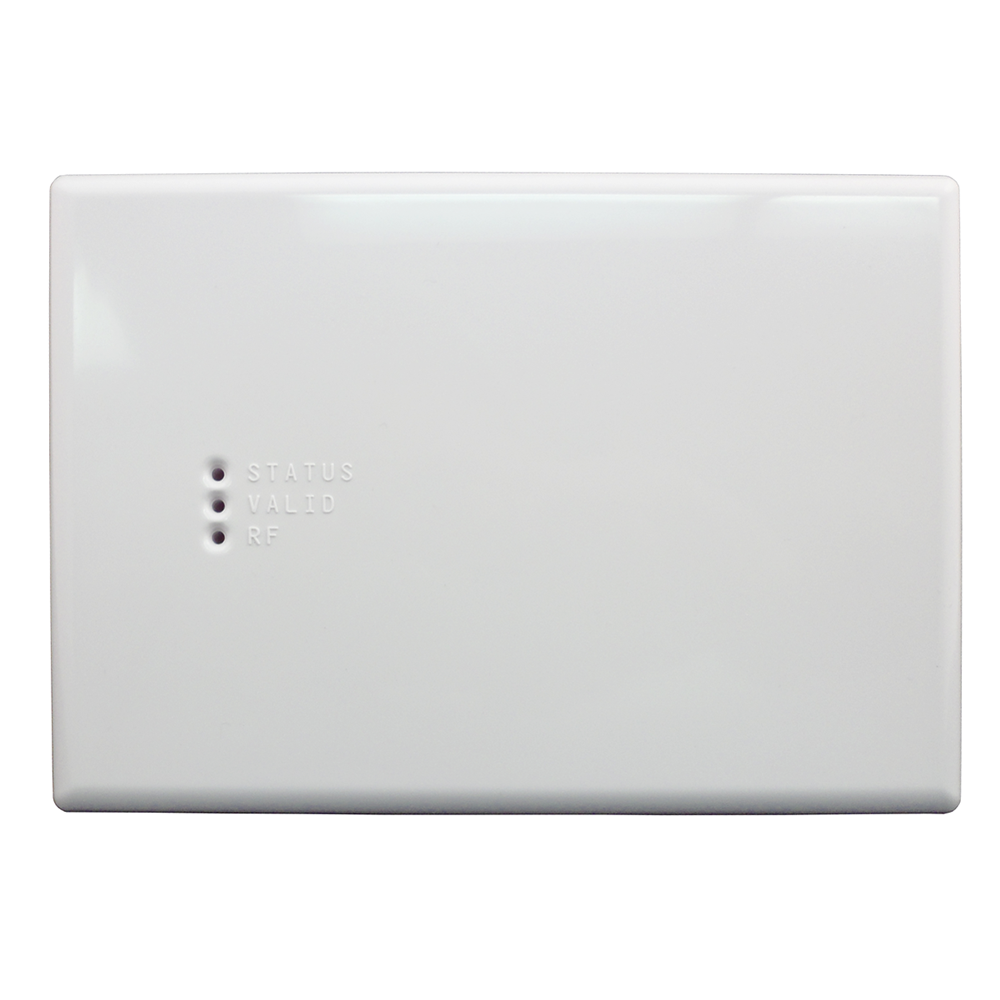

Elk M1XRFTWM

The M1XRFTWM two-way wireless transceivers allow an ELK-M1 or ELK-M1EZ8 control to accept Elk's complete line of two-way wireless sensors. The ELK-M1XRFTWM has been optimized to provide superior signal reception and reliability in multi-transceiver applications.
The ELK-M1XRFTW has been replaced by the ELK-M1XRFTWM. The ELK-M1XRFTWM performs all the functions of the ELK-M1XRFTW and is suitable for single or multiple transceiver installations.
DO NOT mix ELK-M1XRFTW and ELK-M1XRFTWM transceivers in a single M1 installation.
Includes:

  • Two Way Wireless Transceiver
  • Plastic Housing
  • (4) #6 Plastic Anchors
  • (4) # 6 Pan Head Sheet Metal Screws
  • Instructions
Features:
  • Allows up to 144 individual wireless zones (sensors/points)
  • Operates from the 4 wire RS-485 Data Bus
  • Up to 4 M1XRFTWM transceivers may be connected to a single M1 or M1EZ8 control for redundancy and greater coverage
  • Flash memory for firmware updates
Specifications:
  • Operating Frequency: 902 Mhz to 928 Mhz
  • Sensitivity: >105 dbm
  • Operating Temperature: 0 to +120 degrees F
  • Operating Voltage: 12 Volts D.C.
  • Current Draw: 25mA receiving, 85mA transmitting
  • Housing Dimensions: 6.75 in. x 4.69 in. x 1.13 in.
