2 Door Controller

Item #:KT-200
You must be logged in to order this item.
Log in here
KT-200

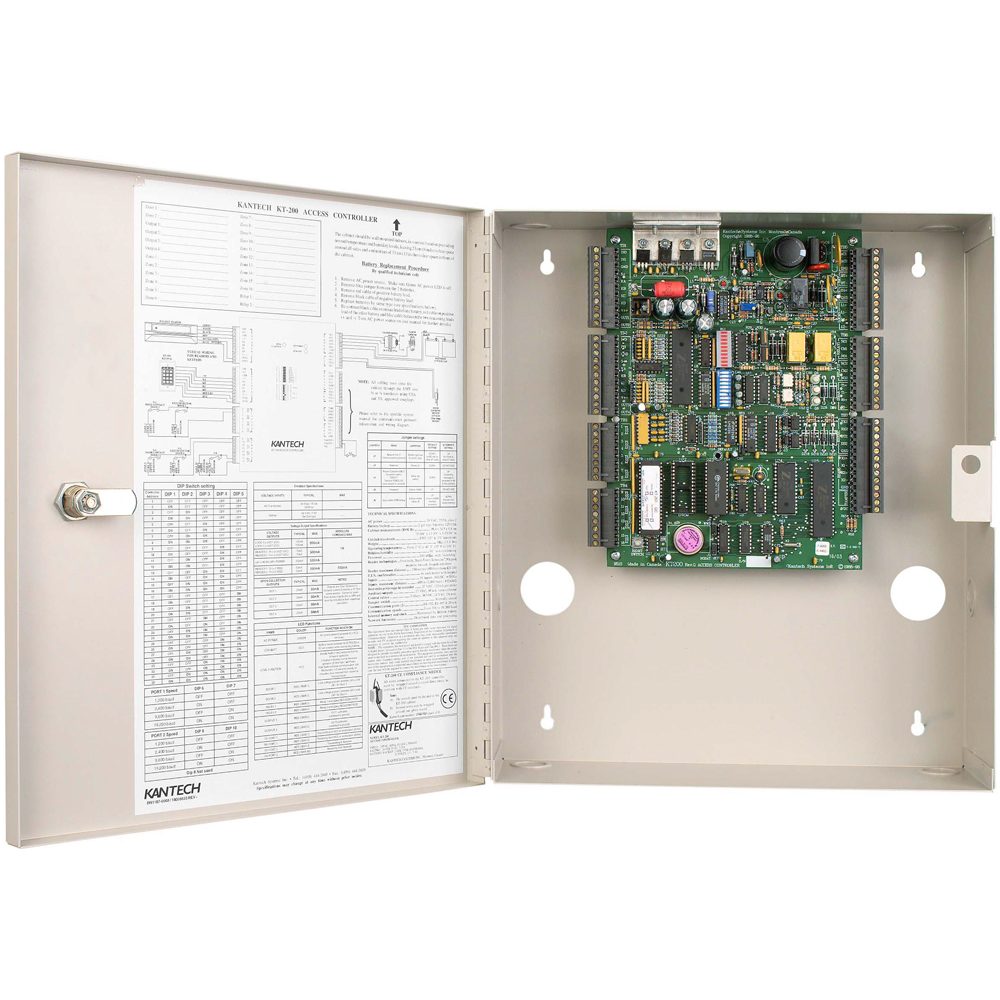

The KT-200 Door Controller is the basis of a 2-door access control system. The KT-200 is capable of controlling two separate doors or a single door (with readers on each side of the door). To form the system, each KT-200 is linked to other KT-200s using an "RS-485" communication bus. A smaller initial system can grow to secure hundreds of doors just by adding more controllers and the appropriate software.

Features

  • 2 doors / 2 readers panel
  • Built-in power supply for door locks (24 VDC)
  • 16 supervised inputs
  • 2 form C relays
  • RS-485 / RS-232 communication ports
  • Optional REB-8 relay modules (2 per KT-200)
  • Lithium batteries for memory backup
  • Status LED on board
  • ABA - Wiegand - BCD data input

New Catalog

Brand
Johnson Controls NA Prod. LLC.
KT-200
2 Door Controller
