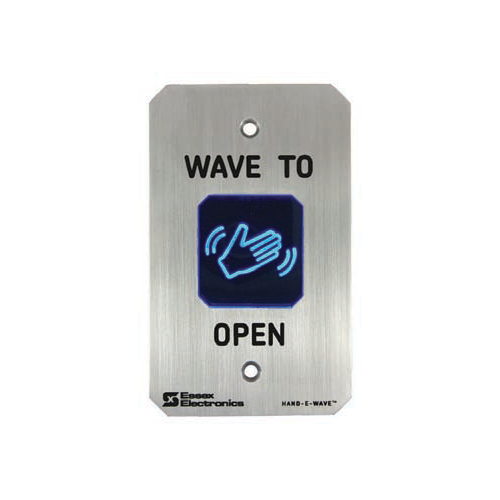

Hand-E-Wave Touchless Switch, Single Gang

Item #:HEW-2
You must be logged in to order this item.
Log in here
HEW-2

  • Power Requirements: 5VDC or 12 to 24VAC/DC. 300mw Standby, 600mw Relay On
  • Outputs: One SPDT Relay, 2A 30VDC Resistive, 1/2A 125VAC
  • Field Programmable Output Mode: Select either Toggle or Timed Output from 1 to 30 seconds
  • Switch Technology: 24GHz Microwave Doppler Radar
  • Detection Range: 2" to 24" Field Adjustable (typical)
  • Detection Mode: Motion (bidirectional)
  • Operating Environment: IP66 Rated
  • Operating Temperature:-40°C to +82°C (-40°F to +180°F)
  • Operating Humidity: 100% Relative Humidity
  • Wire Harness Length: 12 inches
  • Dimensions: 4.5" (H) x 2.75" (W) x 1" (D)

New Catalog

Brand
ESSEX ELECTRONICS INC
HEW-2
Hand-E-Wave Touchless Switch, Single Gang
