10 RELAY BOARD, MOUNTS IN COMM ON ENCLOSURE MS-5UD-3, MS-10UD

Item #:ANN-RLY
You must be logged in to order this item.
Log in here
ANN-RLY

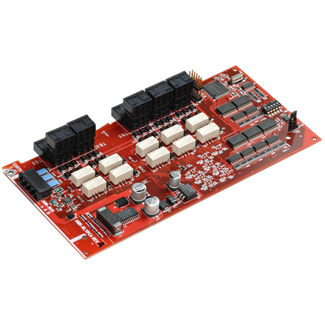

The ANN-RLY relay module provides 10 programmable Form- C relays when used with a compatible FACP (Fire Alarm Control Panel). The ANN-RLY module may be mounted inside the FACP main circuit board chassis, ROME or in the battery area of the enclosure using optional mounting bracket.

  • ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming.
  • Provides 10 programmable Form-C relays.
  • Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay,
  • Input Zones and Silenceable Alarm.
  • Compatible with the MS9600LS, MS-9600UDLS, MS-9200UDLS, MS-9050UD, MS-5UD-3, MRP-2001, MRP-2002and MS-10UD-7.
  • May be powered by 24 VDC from the host FACP or by remote power supply
  • Up to eight ANN-BUS devices may be connected to the ANN-BUS of each FACP.

Fire Miscellaneous

Brand
FireLite
MRP-2001

Pre-Action Deluge Control Panel, 120 VAC

Features

  • 6-zone Style B (Class B) or 6-zone Style D (Class A) with optional modules
  • 4 Programmable Output Circuits Style Y (Class B) or 4 Programmable Output Circuits Style Z (Class A) with optional modules
  • Outputs programmable for Releasing Solenoids
  • Dual hazard operation
  • Adjustable waterflow discharge timer and two soak timers
  • Cross-zone capability
  • Pre-programmed and custom application templates
  • Built-in NAC synchronization for System Sensor, Wheelock, Gentex, Faraday and Amseco devices
  • Built in programmer: Integral 80 character LCD display with backlighting and keypad
  • Annunciator bus supports up to 8 devices, including ANN-80 LCD Remote Annunciator, remote serial or parallel printer gateway, and LED graphic annunciator
  • 7.0 amps total usable current

Item #:
MRP-2001
MRP-2002

AGENT RELEASE CONTROL PANEL, 1 20 VAC

Item #:
MRP-2002
MS-10UD-7

10 Zone Conventional Fire Control Panel with 7 AMP Power Supply

Features

  • Ten-zone Style B (Class B) or Five-zone Style D (Class A) with optional module
  • Four NAC Circuits Style Y (Class B) or Four NAC Circuits Style Z (Class A) with optional modules
  • Built-in NAC synchronization for System Sensor, Wheelock, Gentex, Faraday and Amseco devices
  • Built in programmer: Integral 80 character LCD display with backlighting and keypad
  • Annunciator bus supports up to 8 devices, including ANN-80 LCD Remote Annunciator, ANN-S/PG remote serial or parallel printer gateway, ANN-RLY, 10 form C relay board, ANN-LED Zone annunciator and ANN-I/O LED driver board for graphic annunciators
  • Built-in two-line digital communicator for off premises monitoring
  • Three Form-C programmable relays
  • 7.0 amps total usable current

Item #:
MS-10UD-7
