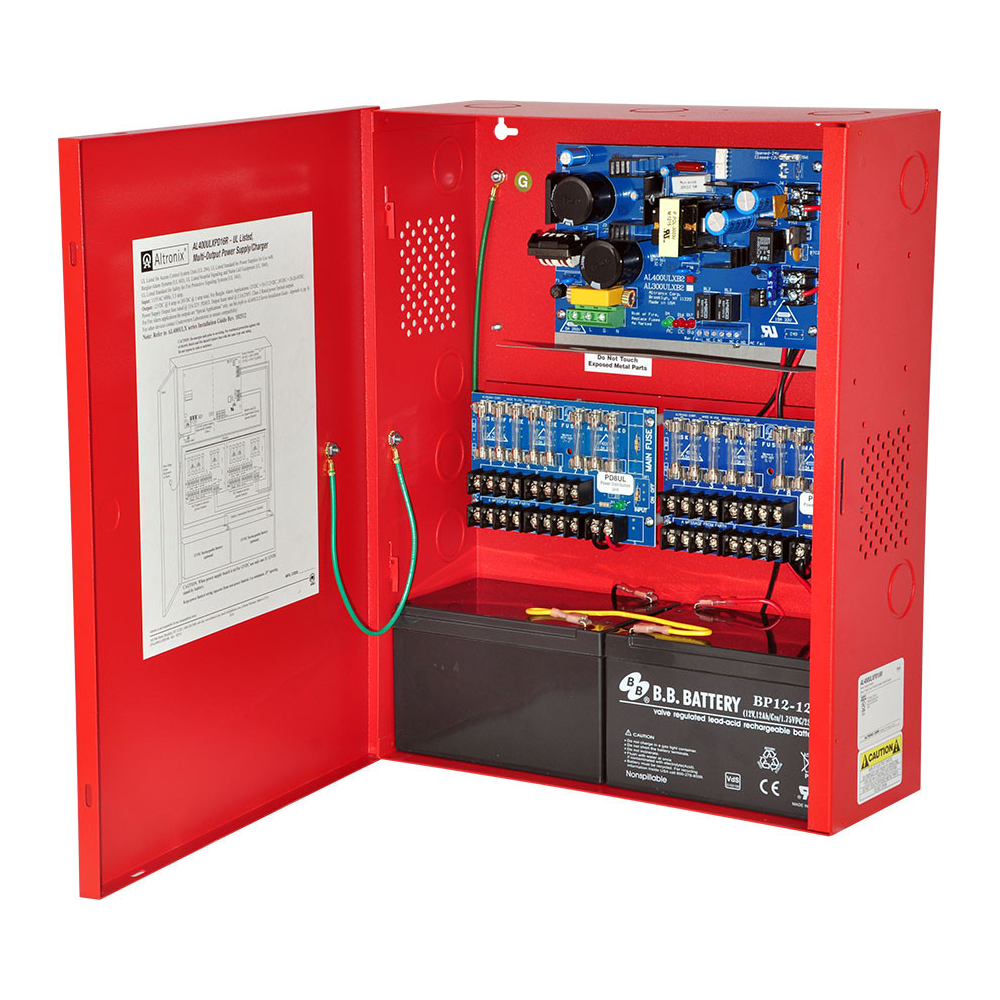

AL400ULXR W/TWO PD8 INSTALLED

Item #:AL400ULXPD16R
You must be logged in to order this item.
Log in here
AL400ULXPD16R

Input

  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.
Output
  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Sixteen (16) Class 2 Rated fuse protected powerlimited outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
Battery Backup
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
Supervision
  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).
Visual Indicators
  • AC input and DC output LED indicators.
