Relay Driver Board for use with 5880

Item #:005883
You must be logged in to order this item.
Log in here
005883

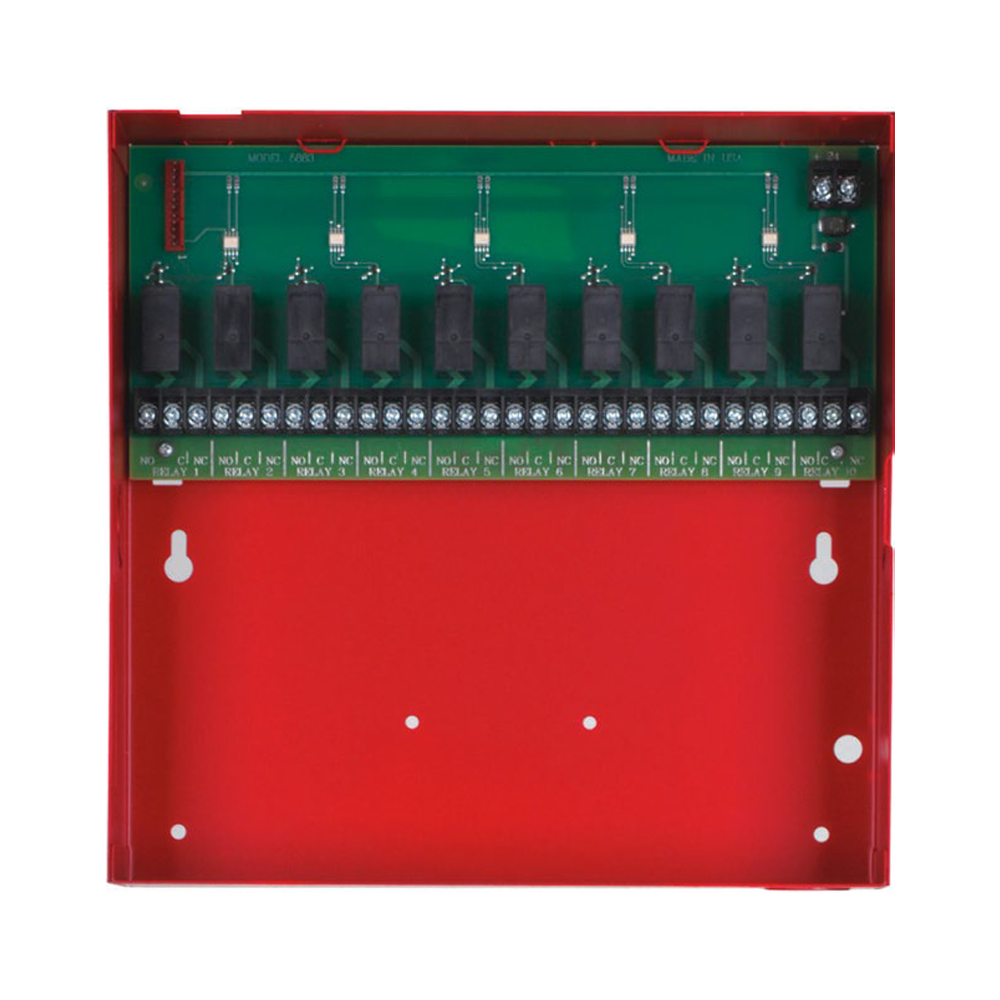

The 5883 relay interface board provides 10 general purpose Form C relays that can be used to control auxiliary devices, interface to building control systems or to remote graphical annunciators. The 5883 is controlled by the 5880 LED/IO module. Each 5880 is capable of driving four 5883 relay interface boards for a total of 40 outputs.

Features:

  • 10 general purpose Form C relays
  • Relays rated at 5A 30VDC or 250VAC resistive
  • Each output can be individually activated by the 5880 LED/IO module
  • Housed in protective cabinet
  • UL listed

Fire Annunciators/Keypads

Brand
Silent Knight
005880

LED Driver Module with 8 Inputs, for use with 5820XL

The 5880 provides you with 40 programmable LED outputs to customize your remote graphical annunciator. The 5880 also provides eight supervised dry contact inputs that can be used to monitor fire alarm pull stations, waterflow and tamper switches, or replicate the 5820XL-EVS eight emergency communication switches with mushroom buttons.

Features:

  • 40 programmable open collector LED outputs
  • Provides 8 supervised dry contact inputs for system or alarm monitoring functions
  • No external resistors required for 5880 LED driver outputs
  • Individually mapped outputs
  • UL listed
