Power Distribution Module, 4 Fused Outputs up to 28VAC/VDC, Board

Item #:PD4
You must be logged in to order this item.
Log in here
PD4

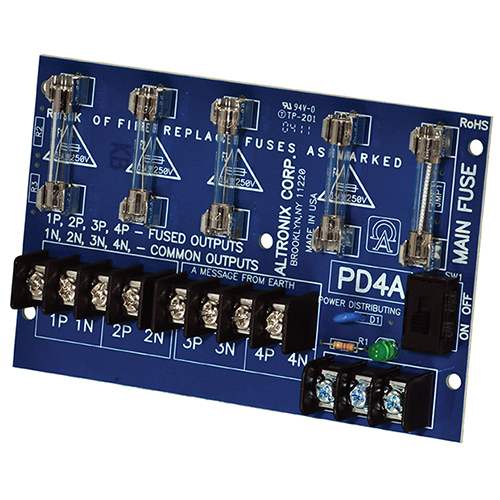

Altronix PD4 power distribution module is designed to convert a single AC or DC input into four (4) individually fuse protected outputs.

Features:

  • Power LED indicator.

Specifications:
Input:
  • 12VDC or 24VDC up to 10A (total output current should not exceed max current rating of power supply employed).
Output:
  • Four (4) fuse protected outputs.
  • Fuses rated @ 3.5A/250V.
  • Surge suppression.
Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%
