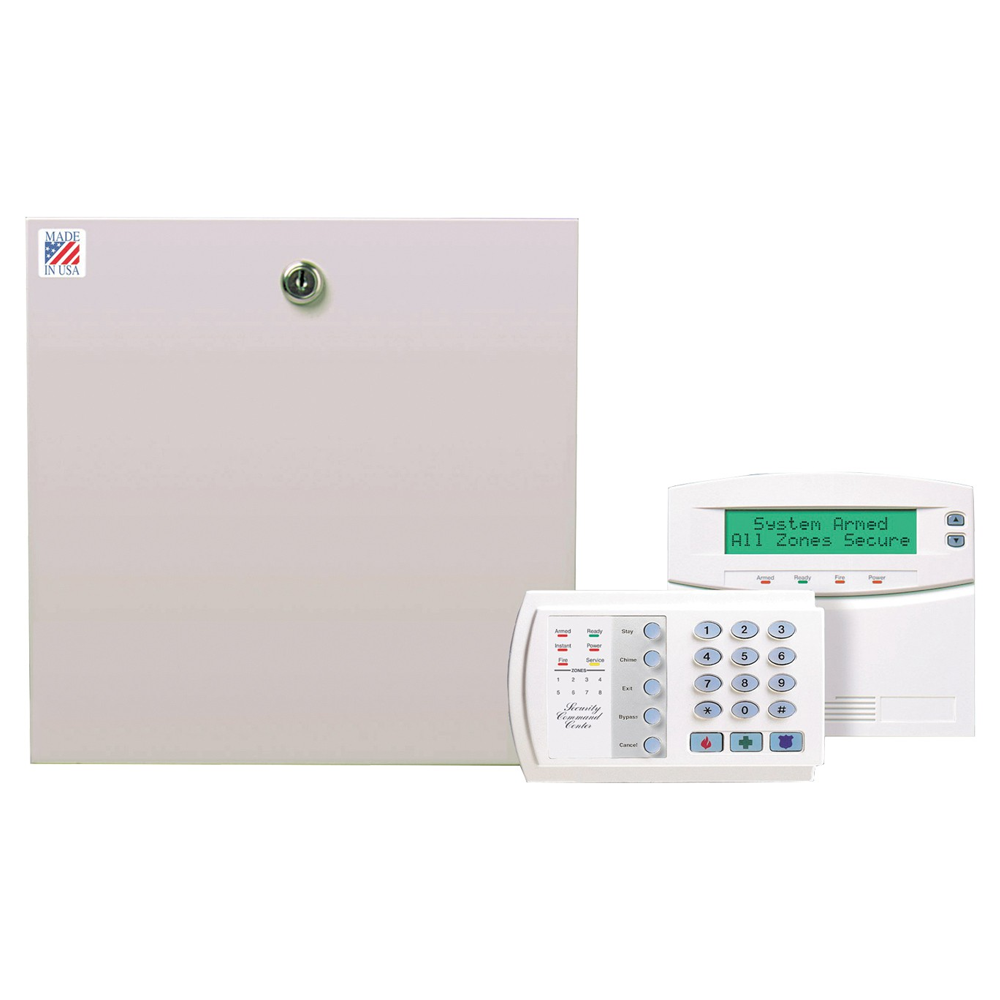

NX-8 Control Panel - Keypad and Transformer Sold Separately

Item #:NX-8

8 hardwire zone inputs, expandable to 48 fully programmable hardwire and/or wireless zonesFeaturing sophisticated software that allows up to 99 users to interface with 48 zones, 8 partitions, and a host of integrated fire, access, verification, and input/output modules, all reported with the most comprehensive and fast SIA and Contact ID formats. The NetworX design allows a fully loaded system to be housed in one single metal enclosure, establishing for the first time, a logical solution and design response to modular systems. Up to 32 modules can be added to expand the capabilities of the NX-8.


  • Flash Memory Microprocessor
  • Expanded Event Log
  • Early Open/Late Close Reporting
  • Programmable Loop Response
  • Accommodates Multiple User Codes from 8 Up to 240
  • Up to 8 True Partitions w/Separate Account Codes, Entry/Exit Delays and Feature Selections for Each Partition
  • Up to 512-Event History Log that Provides Date, Time, Event and User Number
  • Supports SIA and Contact ID Communication Formats
  • 2-Wire or 4-Wire Smoke Detector Compatibility
  • CP-01 2000 Compliant
